AWS CloudFormation (2)- 웹 애플리케이션 배포 및 관리 실습

웹 응용프로그래밍 배포

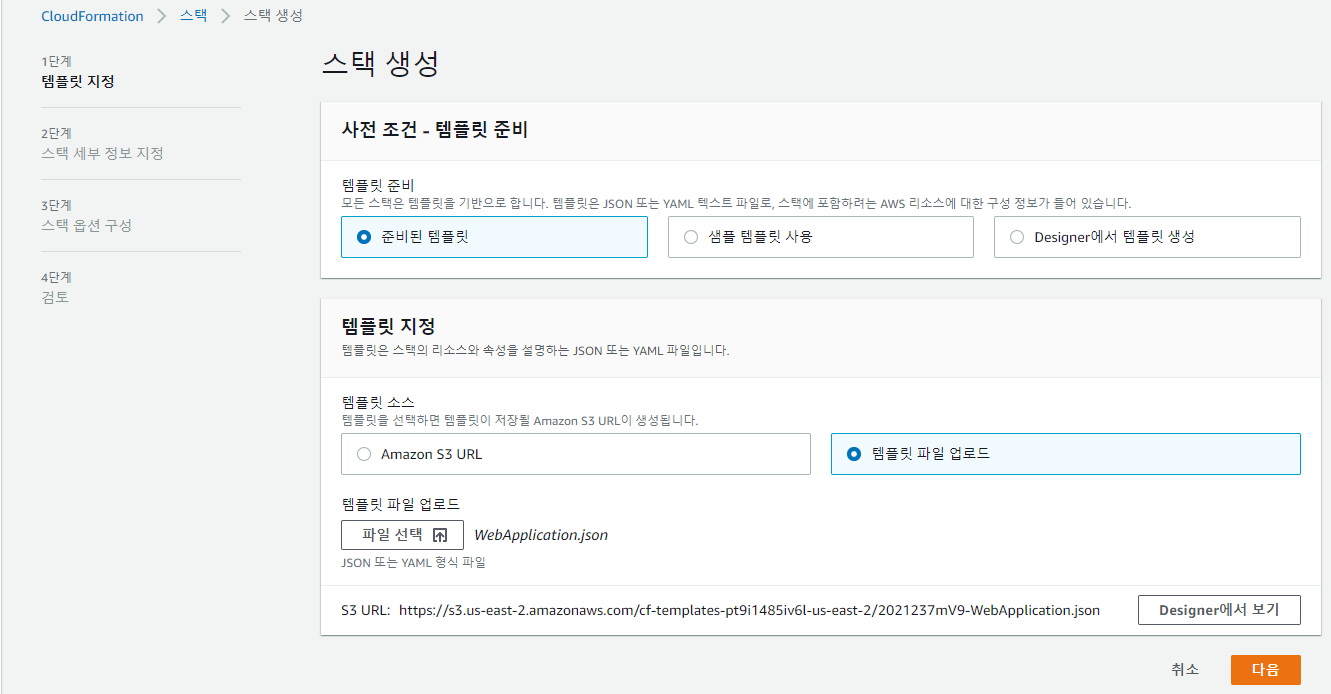

스택 생성

스택 생성을 위한 탬플릿 작성

WebApplication.json

{

"AWSTemplateFormatVersion" : "2010-09-09",

"Description" : "AWS CloudFormation Sample Template: Sample template that can be used to test EC2 updates. **WARNING** This template creates an Amazon Ec2 Instance. You will be billed for the AWS resources used if you create a stack from this template.",

"Parameters" : {

"InstanceType" : { <==사용자가 결정 사용할 인스턴스의 유형을 AllowedValues에서 결정할 수 있음

"Description" : "WebServer EC2 instance type",

"Type" : "String",

"Default" : "t2.nano",

"AllowedValues" : [

"t1.micro",

"t2.nano",

"t2.micro",

"t2.small"

"ConstraintDescription" : "must be a valid EC2 instance type."

}

"Mappings" : {

"AWSInstanceType2Arch" : {

"t1.micro" : { "Arch" : "HVM64" },

"t2.nano" : { "Arch" : "HVM64" },

"t2.micro" : { "Arch" : "HVM64" },

"t2.small" : { "Arch" : "HVM64" }

"AWSRegionArch2AMI" : {

"us-east-1" : {"HVM64" : "ami-0ff8a91507f77f867", "HVMG2" : "ami-0a584ac55a7631c0c"},

"us-west-2" : {"HVM64" : "ami-a0cfeed8", "HVMG2" : "ami-0e09505bc235aa82d"},

"us-west-1" : {"HVM64" : "ami-0bdb828fd58c52235", "HVMG2" : "ami-066ee5fd4a9ef77f1"},

"eu-west-1" : {"HVM64" : "ami-047bb4163c506cd98", "HVMG2" : "ami-0a7c483d527806435"},

"eu-west-2" : {"HVM64" : "ami-f976839e", "HVMG2" : "NOT_SUPPORTED"},

"eu-west-3" : {"HVM64" : "ami-0ebc281c20e89ba4b", "HVMG2" : "NOT_SUPPORTED"},

"eu-central-1" : {"HVM64" : "ami-0233214e13e500f77", "HVMG2" : "ami-06223d46a6d0661c7"},

"ap-northeast-1" : {"HVM64" : "ami-06cd52961ce9f0d85", "HVMG2" : "ami-053cdd503598e4a9d"},

"ap-northeast-2" : {"HVM64" : "ami-0a10b2721688ce9d2", "HVMG2" : "NOT_SUPPORTED"},

"ap-northeast-3" : {"HVM64" : "ami-0d98120a9fb693f07", "HVMG2" : "NOT_SUPPORTED"},

"ap-southeast-1" : {"HVM64" : "ami-08569b978cc4dfa10", "HVMG2" : "ami-0be9df32ae9f92309"},

"ap-southeast-2" : {"HVM64" : "ami-09b42976632b27e9b", "HVMG2" : "ami-0a9ce9fecc3d1daf8"},

"ap-south-1" : {"HVM64" : "ami-0912f71e06545ad88", "HVMG2" : "ami-097b15e89dbdcfcf4"},

"us-east-2" : {"HVM64" : "ami-0b59bfac6be064b78", "HVMG2" : "NOT_SUPPORTED"},

"ca-central-1" : {"HVM64" : "ami-0b18956f", "HVMG2" : "NOT_SUPPORTED"},

"sa-east-1" : {"HVM64" : "ami-07b14488da8ea02a0", "HVMG2" : "NOT_SUPPORTED"},

"cn-north-1" : {"HVM64" : "ami-0a4eaf6c4454eda75", "HVMG2" : "NOT_SUPPORTED"},

"cn-northwest-1" : {"HVM64" : "ami-6b6a7d09", "HVMG2" : "NOT_SUPPORTED"}

}

"Resources" : {

"WebServerInstance": {

"Type" : "AWS::EC2::Instance",

"Metadata" : {

"Comment" : "Install a simple PHP application",

"AWS::CloudFormation::Init" : { <==인스턴스가 실행될 때 아래의 내용을 실행

"config" : {

"packages" : {

"yum" : {

"httpd" : [],

"php" : []

}

"files" : {

"/var/www/html/index.php" : {

"content" : { "Fn::Join" : ["", [

"<?php\n",

"echo '<h1>AWS CloudFormation sample PHP application</h1>';\n",

"?>\n"

]]},

"mode" : "000644",

"owner" : "apache",

"group" : "apache"

"/etc/cfn/cfn-hup.conf" : {

"content" : { "Fn::Join" : ["", [

"[main]\n",

"stack=", { "Ref" : "AWS::StackId" }, "\n",

"region=", { "Ref" : "AWS::Region" }, "\n"

]]},

"mode" : "000400",

"owner" : "root",

"group" : "root"

"/etc/cfn/hooks.d/cfn-auto-reloader.conf" : {

"content": { "Fn::Join" : ["", [

"[cfn-auto-reloader-hook]\n","triggers=post.update\n","path=Resources.WebServerInstance.Metadata.AWS::CloudFormation::Init\n", "action=/opt/aws/bin/cfn-init -s ", { "Ref" : "AWS::StackId" }, " -r WebServerInstance "," --region ", { "Ref" : "AWS::Region" }, "\n",

"runas=root\n"

]]}

}

"services" : {

"sysvinit" : {

"httpd" : { "enabled" : "true", "ensureRunning" : "true" },

"cfn-hup" : { "enabled" : "true", "ensureRunning" : "true",

"files" : ["/etc/cfn/cfn-hup.conf", "/etc/cfn/hooks.d/cfn-auto-reloader.conf"]}

}

"Properties": {

"ImageId" : { "Fn::FindInMap" : [ "AWSRegionArch2AMI", { "Ref" : "AWS::Region" },{ "Fn::FindInMap" : [ "AWSInstanceType2Arch", { "Ref" : "InstanceType" }, "Arch" ] } ] }, <=="Ref" : "InstanceType" 사용자가 정한 값에 맞는 arch 타입을 선택

"InstanceType" : { "Ref" : "InstanceType" },

"SecurityGroups" : [ {"Ref" : "WebServerSecurityGroup"} ],

"UserData" : { "Fn::Base64" : { "Fn::Join" : ["", [

"#!/bin/bash -xe\n",

"yum install -y aws-cfn-bootstrap\n",

"# Install the files and packages from the metadata\n",

"/opt/aws/bin/cfn-init -v ",

" --stack ", { "Ref" : "AWS::StackName" },

" --resource WebServerInstance ",

" --region ", { "Ref" : "AWS::Region" }, "\n",

"# Start up the cfn-hup daemon to listen for changes to the Web Server metadata\n",

"/opt/aws/bin/cfn-hup || error_exit 'Failed to start cfn-hup'\n",

"# Signal the status from cfn-init\n",

"/opt/aws/bin/cfn-signal -e $? ",

" --stack ", { "Ref" : "AWS::StackName" },

" --resource WebServerInstance ",

" --region ", { "Ref" : "AWS::Region" }, "\n"

]]}}

"CreationPolicy" : {

"ResourceSignal" : {

"Timeout" : "PT5M"

}

"WebServerSecurityGroup" : {

"Type" : "AWS::EC2::SecurityGroup",

"Properties" : {

"GroupDescription" : "Enable HTTP access via port 80",

"SecurityGroupIngress" : [

{"IpProtocol" : "tcp", "FromPort" : "80", "ToPort" : "80", "CidrIp" : "0.0.0.0/0"}

]

}

"Outputs" : {

"WebsiteURL" : {

"Description" : "Application URL",

"Value" : { "Fn::Join" : ["", ["http://", { "Fn::GetAtt" : [ "WebServerInstance", "PublicDnsName" ]}]] }

}

탬플릿에 작성 한 것과 같이 인스턴스는 {t1.micro, t2.nano, t2.micro, t2.small}중에 선택

...

"Parameters" : {

"InstanceType" : {

"Description" : "WebServer EC2 instance type",

"Type" : "String",

"Default" : "t2.nano",

"AllowedValues" : [

"t1.micro",

"t2.nano",

"t2.micro",

"t2.small"

"ConstraintDescription" : "must be a valid EC2 instance type."

}

...

실습에서는 t2.nano로 진행

이후로는 기본 설정시 오류발생

No default VPC for this user (Service: AmazonEC2; Status Code: 400; Error Code: VPCIdNotSpecified; Request ID: f20eae08-9779-4fd9-a2e5-64724cd3c502; Proxy: null)

해당 계정에 할당된 기본 VPC가 존재하지 않음

기본 VPC를 생성 후 진행해야함

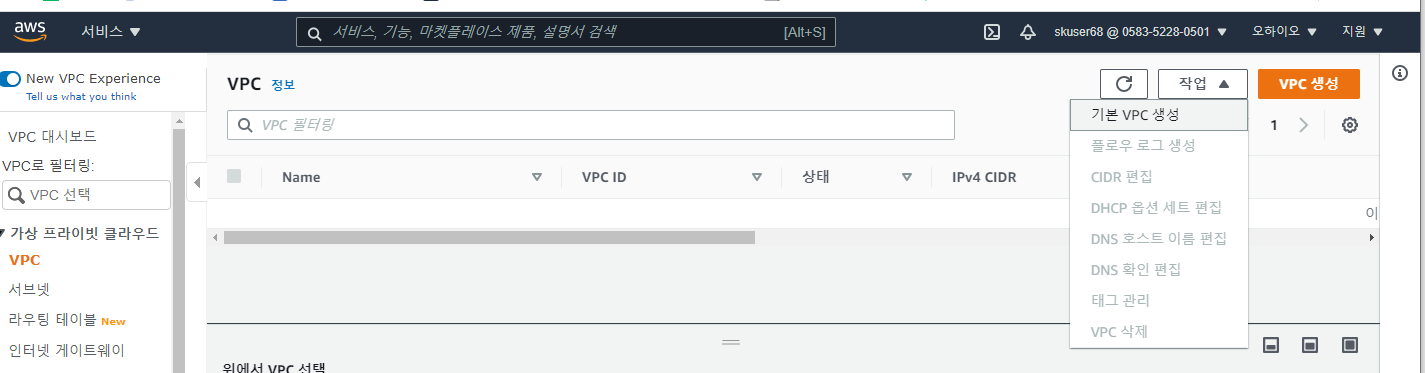

기본 VPC생성

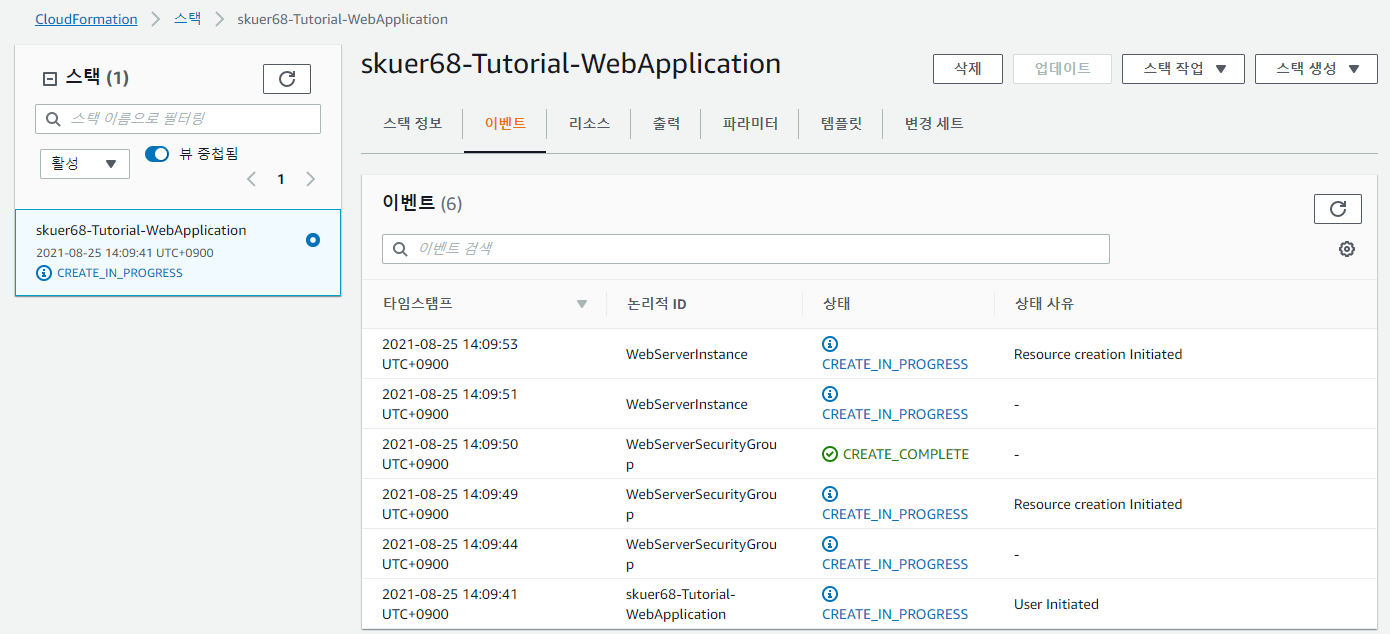

재생성시 정상 생성을 확인

탬플릿을 따라 생성된 보안그룹

...

"WebServerSecurityGroup" : {

"Type" : "AWS::EC2::SecurityGroup",

"Properties" : {

"GroupDescription" : "Enable HTTP access via port 80",

"SecurityGroupIngress" : [ ⇐ Adds an inbound rule to a security group.

{"IpProtocol" : "tcp", "FromPort" : "80", "ToPort" : "80", "CidrIp" : "0.0.0.0/0"}

]

}

...

사용자가 선택한 t2.nano로 만들어진 인스턴스 확인

...

"ImageId" : { "Fn::FindInMap" : [ "AWSRegionArch2AMI", { "Ref" : "AWS::Region" },{ "Fn::FindInMap" : [ "AWSInstanceType2Arch", { "Ref" : "InstanceType" }, "Arch" ] } ] },

...

"InstanceType" : { "Ref" : "InstanceType" },

...

생성된 서비스 확인

...

"files" : {

"/var/www/html/index.php" : {

"content" : { "Fn::Join" : ["", [

"<?php\n",

"echo '<h1>AWS CloudFormation sample PHP application</h1>';\n",

"?>\n"

]]},

"mode" : "000644",

"owner" : "apache",

"group" : "apache"

}

...

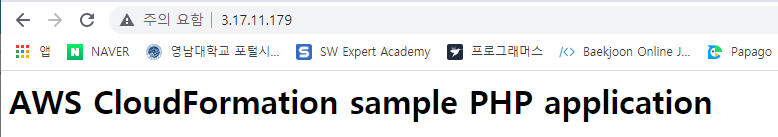

웹 페이지 확인

탬플릿에 대한 웹 페이지가 배포됨

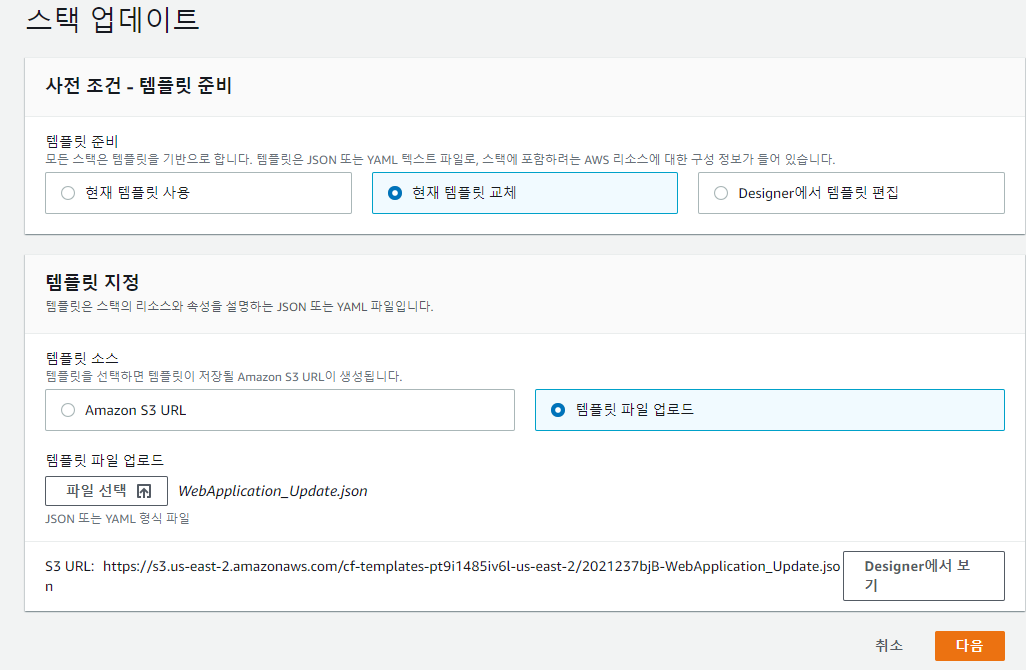

EC2 인스턴스 유형 업데이트

생성된 인스턴스에 접속하기 위한 keypair를 부여, SSH접속을 위해 Security 그룹을 변경하는 리소스를 추가, 애플리케이션을 변경하는 코드를 추가하여 기존의 스택을 업데이트함

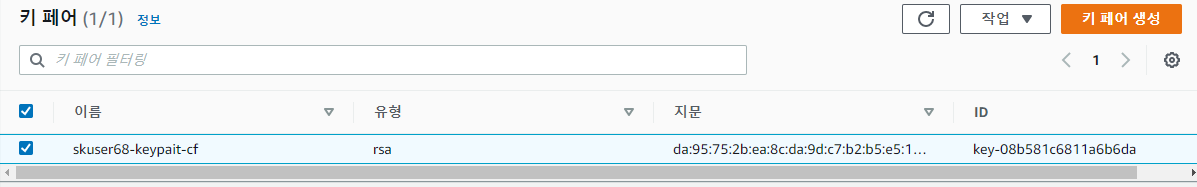

키페어 생성

WebApplication.json파일 수정

{

"AWSTemplateFormatVersion" : "2010-09-09",

"Parameters" : {

"InstanceType" : {

"Description" : "WebServer EC2 instance type",

"Type" : "String",

"Default" : "t2.nano",

"AllowedValues" : [

"t1.micro",

"t2.nano",

"t2.micro",

"t2.small"

"ConstraintDescription" : "must be a valid EC2 instance type."

"KeyName" : {

"Description" : "Name of an existing EC2 key pair for SSH access",

"Type" : "AWS::EC2::KeyPair::KeyName"

"SSHLocation" : {

"Description" : "The IP address range that can be used to SSH to the EC2 instances",

"Type" : "String",

"MinLength" : "9",

"MaxLength" : "18",

"Default" : "0.0.0.0/0",

"AllowedPattern" : "(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})/(\\d{1,2})",

"ConstraintDescription" : "must be a valid IP CIDR range of the form x.x.x.x/x"
